Asus Prime B860M-A-CSM

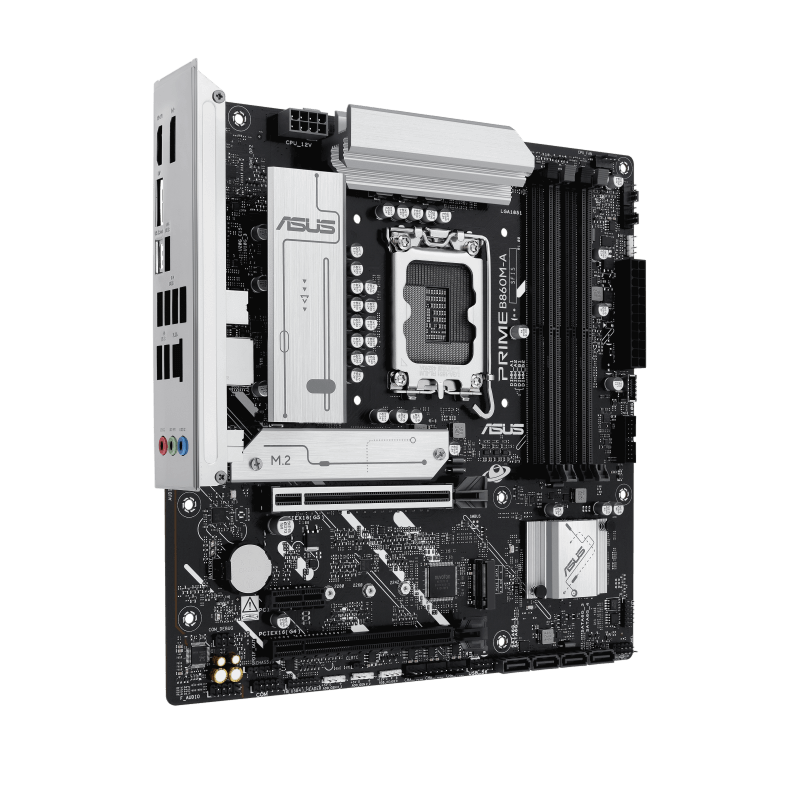

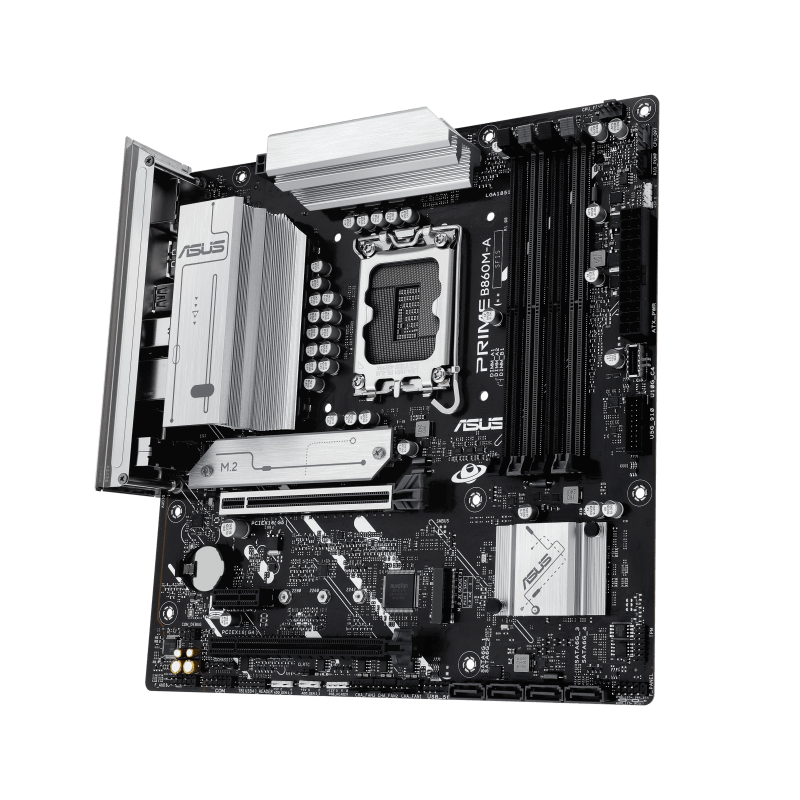

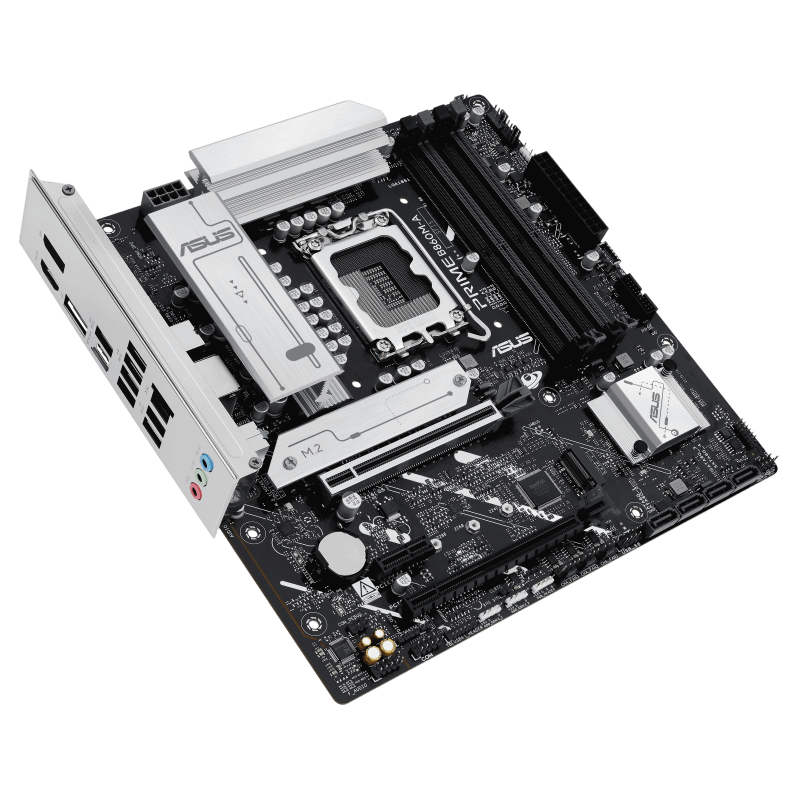

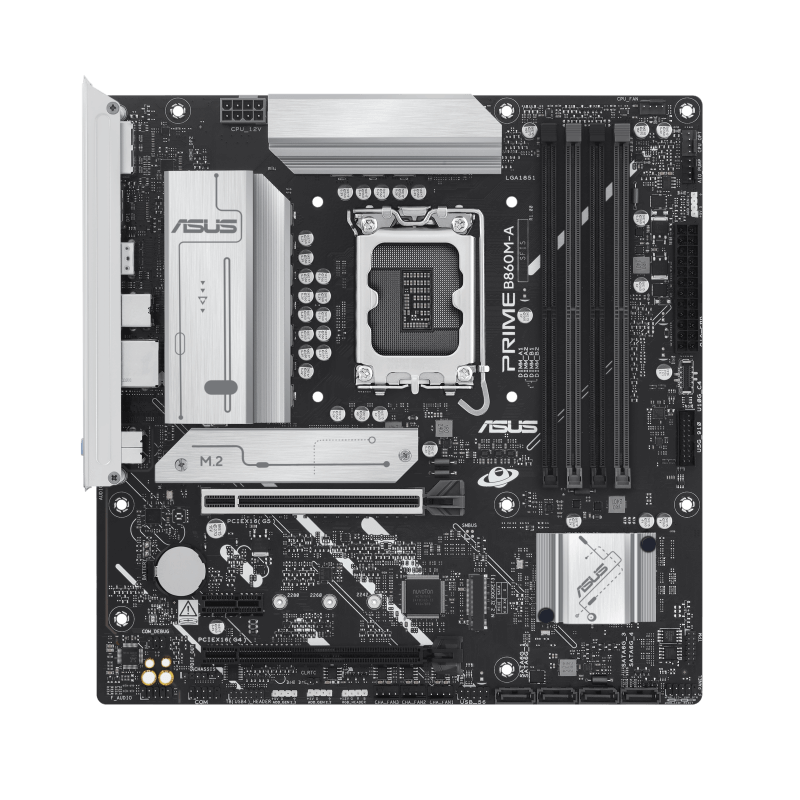

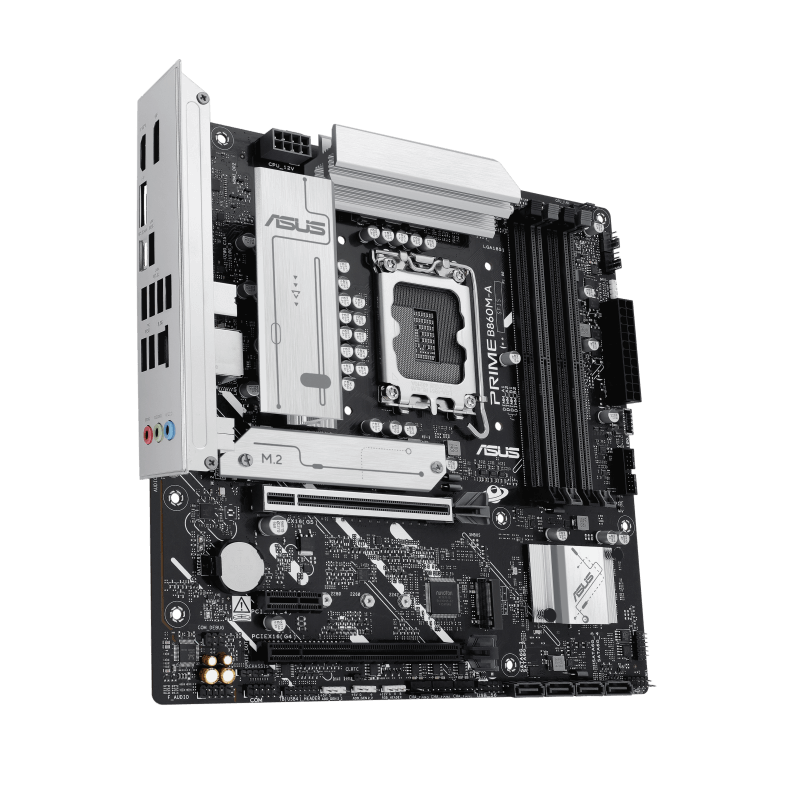

Prime B860M-A-CSM
Les cartes mères ASUS de la série PRIME sont conçues pour libérer tout le potentiel des derniers processeurs Intel® Core™ Ultra (série 2). En plus de présenter un solide design pour l'alimentation et des solutions innovantes pour le refroidissement, la carte mère PRIME B860M-A-CSM offre aux utilisateurs et amateurs de montage PC des options intelligentes d’optimisation des performances, paramétrables via des logiciels et micrologiciels intuitifs. Elle est conçue pour l'IA avancée, offrant la puissance et la connectivité nécessaires aux applications d'IA exigeantes.
| CPU | Supports Intel® Core™ Ultra Processors(Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B860 Chipset |
| Mémoire | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
| Carte graphique |
2 x DisplayPort
1 x HDMI™ port 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output |
| Slots d´extension |
Intel® Core™ Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
| Stockage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel®B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports |
| LAN | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Ports USB |
Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 1 x USB 10Gbps port (1 x Type-A ) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)** Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |

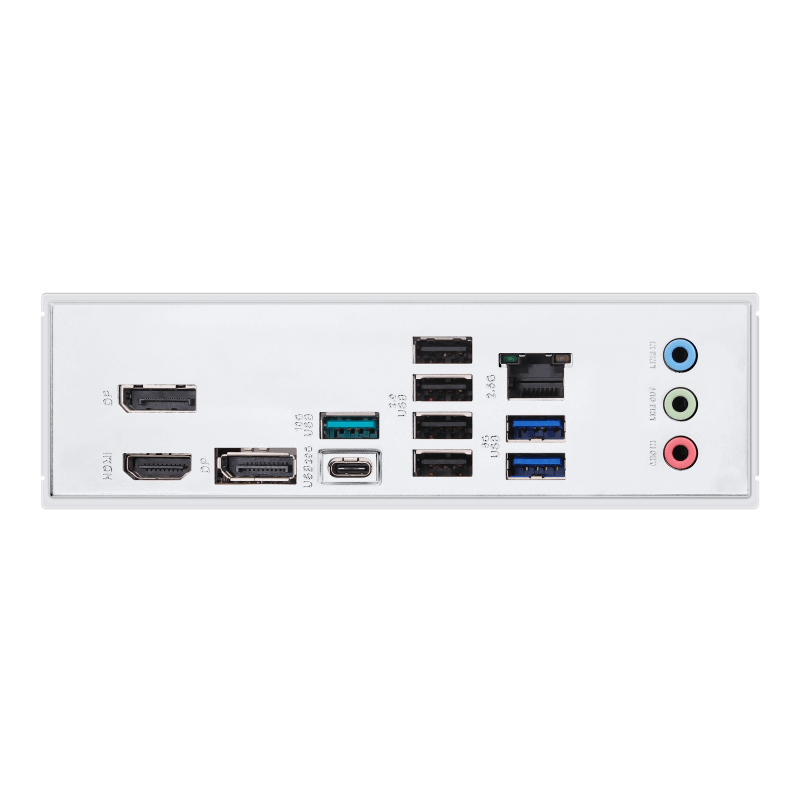

| Interface E/S arrière | 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A ) 2 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Interface E/S interne |
Fan and Cooling Related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
| BIOS |
256(128+128) Mb Flash ROM, UEFI AMI BIOS
|
| Facteur d´encombrement |
micro-ATX Form Factor
24.4cm x 22.2cm |
